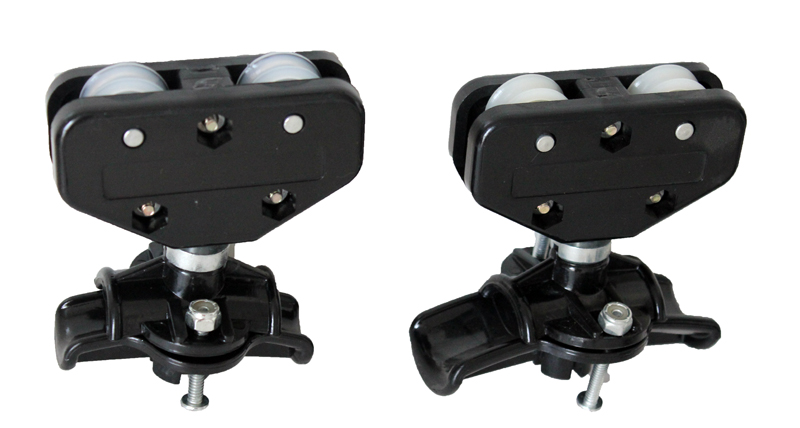

wire rope middle trolley for round cable RMT
RMT 30
Type | RMT-30 WIRE ROPE MIDDLE CABLE TROLLEY | RMT-40 WIRE ROPE MIDDLE CABLE TROLLEY |
Wheels | Wheels: plastic Temperature resistance:-30℃to+120℃ Traveling Speed: ca. 120m/min. | |
Material | Carrier body: plastic Support saddle: plastic Dowel: steel, galvanized Hardware: galvanized Temperature resistance:-30℃to+100℃ | |
Max.cable load | Max.8 kg | Max.10 kg |
Dim.of Cable (mm) | D=Φ30mm | D=Φ40mm |
L1(mm) | 77 | 102 |
Weight(kg) | 0.17 | 0.18 |
Cat.-NO. | 783230 | 783240 |
